MG01 Burgmann MG1

MINKIX Code:
MG01
Equivalent to:

Burgmann MG1/12/13, AES B02/012/013, Vulcan 191/192/193
INTRODUCTION OF THIS MECHANICAL SEAL

MG series is widly used in process, chemical, pulp and paper, waste water, food and beverage sugar,etc industries
MG series is shaft protection over entire seal length, seal face protection during installation.
MG series is insensitive to shaft deflections due to large axial movement ability for universal application opportunities

Quality Material
Low Leakage Rate
Fast Quotation
In-stock Supply
Lightening Delivery
Reliable After-Sales

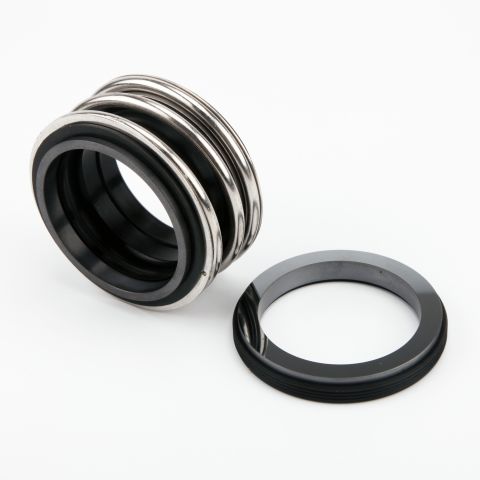

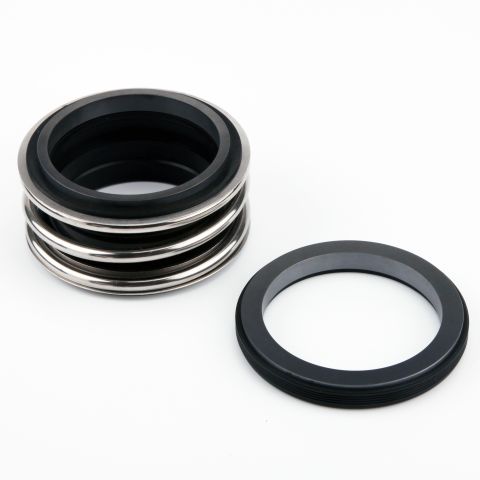

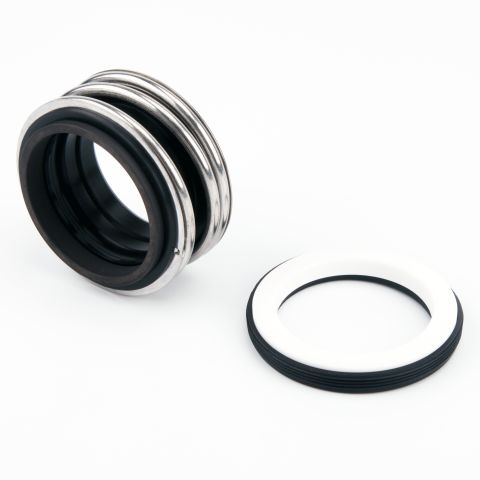

Product Drawing

Product Information

Design Features

Single spring enclosed and unbalanced bellows seal
Independent on direction of rotation for plain shafts

Standard seat
G60, G6

Materials available
Seal face: carbon, SIC
Elastomer: Nitrile, Viiton, EPDM

Operating Conditions
Temperature: -20°C to +200°C
Pressure: Up to 12 bar g, 174 psig
Speed: Up to 10m/s, 2000 fpm
Depending on medium, size and material

Product Dimensions & Information

Imperial Dimension

D(mm)

L12

L13

L1S

L1K

L1N

10	24.0	21.0	15.0	25.9	33.4	6.6	21.6	32.5	40.0
12	24.0	23.0	15.0	25.9	33.4	6.6	21.6	32.5	40.0
14	28.5	25.0	17.0	28.4	33.4	6.6	23.6	35.0	40.0
16	28.5	27.0	17.0	28.4	33.4	6.6	23.6	35.0	40.0
18	32.0	33.0	19.5	30.0	37.5	7.5	27.0	37.5	45.0
20	37.0	35.0	21.5	30.0	37.5	7.5	29.0	37.5	45.0
22	37.0	37.0	21.5	30.0	37.5	7.5	29.0	37.5	45.0
24	42.5	39.0	22.5	32.5	42.5	7.5	30.0	40.0	50.0
25	42.5	40.0	23.0	32.5	42.5	7.5	30.5	40.0	50.0
28	49.0	43.0	26.5	35.0	42.5	7.5	34.0	42.5	50.0
30	49.0	45.0	26.5	35.0	47.5	7.5	34.0	42.5	55.0
32	53.5	48.0	27.5	35.0	47.5	7.5	35.0	42.5	55.0
33	53.5	48.0	27.5	35.0	47.5	7.5	35.0	42.5	55.0
35	57.0	50.0	28.5	35.0	47.5	7.5	36.0	42.5	55.0
38	59.0	56.0	30.0	36.0	46.0	9.0	39.0	45.0	55.0
40	62.0	58.0	30.0	36.0	46.0	9.0	39.0	45.0	55.0
43	65.5	61.0	30.0	36.0	51.0	9.0	39.0	45.0	60.0
45	68.0	63.0	30.0	36.0	51.0	9.0	39.0	45.0	60.0
48	70.5	66.0	30.5	36.0	51.0	9.0	39.5	45.0	60.0
50	74.0	70.0	30.5	38.0	50.5	9.5	40.0	47.5	60.0
53	78.5	73.0	33.0	36.5	59.0	11.0	44.0	47.5	70.0
55	81.0	75.0	35.0	36.5	59.0	11.0	46.0	47.5	70.0
58	85.5	78.0	37.0	41.5	59.0	11.0	48.0	52.5	70.0
60	88.5	80.0	38.0	41.5	59.0	11.0	49.0	52.5	70.0
65	93.5	85.0	40.0	41.5	69.0	11.0	51.0	52.5	80.0
68	96.5	90.0	40.0	41.2	68.7	11.3	51.3	52.5	80.0
70	99.5	92.0	40.0	48.7	68.7	11.3	51.3	60.0	80.0
75	107.0	97.0	40.0	48.7	68.7	11.3	51.3	60.0	80.0
80	112.0	105.0	40.0	48.0	78.0	12.0	52.0	60.0	90.0
85	120.0	110.0	41.0	46.0	76.0	14.0	55.0	60.0	90.0
90	126.5	115.0	45.0	51.0	76.0	14.0	59.0	65.0	90.0
95	131.5	120.0	46.0	51.0	76.0	14.0	60.0	65.0	90.0
100	136.5	125.0	47.0	51.0	76.0	14.0	61.0	65.0	90.0

MINKIX Material Code

The MINKIX Material Code is comprised of 5 character code such as "BCFZF" which is defined by the following parameters. Check the material code below to specify your requirement on materials. With the detailed code provided, MINKIX promises to speed up offering quotation to you.

Rotary Materials
- A – Resin-Car
- B – 99.5% Ceramic
- C – Anti-Car
- Q – Sintered-sic
- S – RB-SIC
- T– YN6 TC
- I – High Nickel Cast Iron
- Z – Bronze
- D – 304 Stainless Steel
- G – 316 Stainless Steel
Stationary Materials
- A – Resin-Car
- B – 99.5% Ceramic
- C – Anti-Car
- Q – Sintered-sic
- S – RB-SIC
- T– YN6 TC
- I – High Nickel Cast Iron
- Z – Bronze
- D – 304 Stainless Steel
- G – 316 Stainless Steel
Secondary Seal Materials
- K – KALREZ
- X – AFLAS
- E – EPDM
- F – PTFE
- M – SILICONE
- N – NITRILE
- P – NEOPRENE
- V – FKM
Spring Materials
- D – 304 Stainless Steel
- G – 316 Stainless Steel
- D2 – 304L Stainless Steel
- G2 – 316L Stainless Steel
- H – Hastelloy
Construction Materials
- D – 304 Stainless Steel
- G – 316 Stainless Steel
- D2 – 304L Stainless Steel
- G2 – 316L Stainless Steel
- H – Hastelloy

Combine

Send Your Enquiry

Having no Idea About Materials?

Feel free to contact MINKIX's experts. We can offer professional advice with working environment information provided.

Contact MINKIX
