M6 John Crane Type 6

MINKIX Code:
M6
Equivalent to:

Johncrane Type 6
INTRODUCTION OF THIS MECHANICAL SEAL

M6 seals are designed for use in small centrifugal water pumps, deep and shallow well jet pumps, swimming pool pumps and waste water pumps

Quality Material
Low Leakage Rate
Fast Quotation
In-stock Supply
Lightening Delivery
Reliable After-Sales

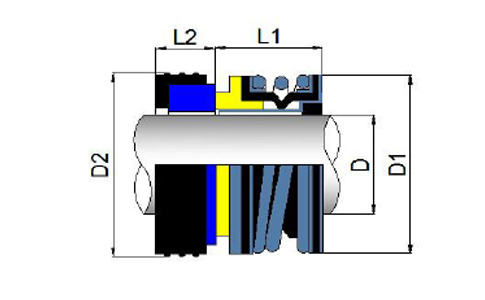

Product Drawing

Product Information

Design Features

One piece design enhances production line installation and allows for ease of replacement

Materials designed to meet the broadest range of applications

Elastomer drive ring is pre-loaded to provide positive drive and tight seal along the shaft

Full convolution elastomer bellows provides maximum flexibility in compensating for shaft movement and wear

Coil spring and ferrules provide consistent face loading through extreme working conditions

Materials available

Seal face: Carbon, SIC

Elastomer: Nitrile, Viton, EPDM

Operating Conditions

Temperature: -40°C to +205°C

Pressure: Up to 0.5 bar , 75 psi

Speed: Up to 5m/s, 1000fpm

Depending on medium, size and material

Product Dimensions & Information

Imperial Dimension

D(IN) D1 D2 L1 L2 L

0.375 24.0 22.2 16.7 6.3 23.0

0.500 27.0 25.4 16.7 8.0 24.7

0.625 31.0 31.8 18.3 10.3 28.6

0.750 35.0 35.0 18.3 10.3 28.6

0.875 36.3 38.1 20.7 11.1 31.7

1.000 43.5 41.3 20.7 11.0 31.7

MINKIX Material Code

The MINKIX Material Code is comprised of 5 character code such as "BCFZF" which is defined by the following parameters. Check the material code below to specify your requirement on materials. With the detailed code provided, MINKIX promises to speed up offering quotation to you.

Rotary Materials
- A – Resin-Car
- B – 99.5% Ceramic
- C – Anti-Car
- Q – Sintered-sic
- S – RB-SIC
- T– YN6 TC
- I – High Nickel Cast Iron
- Z – Bronze
- D – 304 Stainless Steel
- G – 316 Stainless Steel
Stationary Materials
- A – Resin-Car
- B – 99.5% Ceramic
- C – Anti-Car
- Q – Sintered-sic
- S – RB-SIC
- T– YN6 TC
- I – High Nickel Cast Iron
- Z – Bronze
- D – 304 Stainless Steel
- G – 316 Stainless Steel
Secondary Seal Materials
- K – KALREZ
- X – AFLAS
- E – EPDM
- F – PTFE
- M – SILICONE
- N – NITRILE
- P – NEOPRENE
- V – FKM
Spring Materials
- D – 304 Stainless Steel
- G – 316 Stainless Steel
- D2 – 304L Stainless Steel
- G2 – 316L Stainless Steel
- H – Hastelloy
Construction Materials
- D – 304 Stainless Steel
- G – 316 Stainless Steel
- D2 – 304L Stainless Steel
- G2 – 316L Stainless Steel
- H – Hastelloy

Combine
