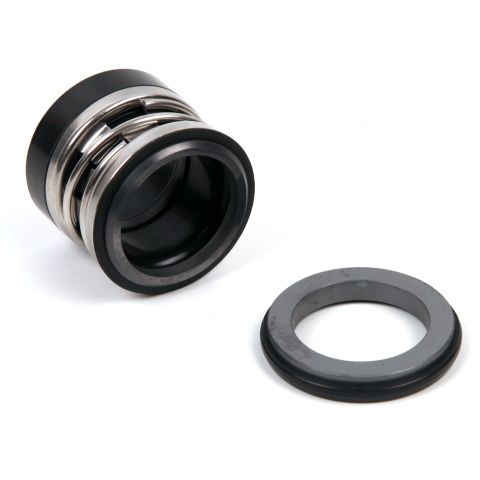

M2100N John Crane 2100N

MINKIX Code:
M2100N
Equivalent to:

Johncrane 2100 L1S/L1K/L1N, AES B05/B052/B053, Vulcan 140/142/143
INTRODUCTION OF THIS MECHANICAL SEAL

M2100 series is widly used in process, chemical, pulp and paper, waste water, food and beverage sugar,etc industries
M2100 series is shaft protection over entire seal length, seal face protection during installation.
M2100 series is insensitive to shaft deflections due to large axial movement ability for universal application opportunities

Quality Material
Low Leakage Rate
Fast Quotation
In-stock Supply
Lightening Delivery
Reliable After-Sales

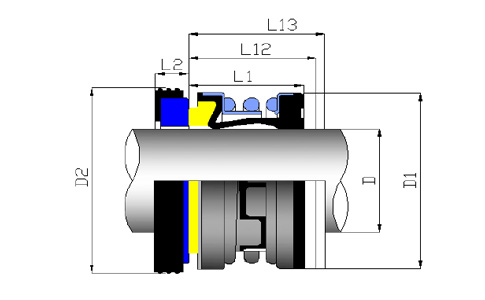

Product Drawing

Product Information

Design Features

Compact design fits DIN 24960, ISO 3069 and ANSI B73.1M-1991

Unitized, Easy-to-Fit Design

Positive key drive via Drive bands protects rubber bellows from torsional strain

Operating Conditions

Temperature: -20°C to +200°C

Pressure: Up to 20 bar , 290 psi

Speed: Up to 15m/s, 3000fpm

Depending on medium, size and material

Materials available

Seal face: Carbon, SIC,TC, Ceramic

Elastomer: Nitrile, Viton, EPDM

Product Dimensions & Information

Imperial Dimension

D (mm)

L12

L13

L1S

L1K

L1N

10	20.0	22.0	15.0	27.5	35.0	5.0	20.0	32.5	40.0
12	22.0	23.0	15.0	26.5	34.0	6.0	21.0	32.5	40.0
14	24.0	25.0	15.0	29.0	34.0	6.0	21.0	35.0	40.0
16	26.0	27.0	15.0	29.0	34.0	6.0	21.0	35.0	40.0
18	32.0	33.0	20.0	31.5	39.0	6.0	26.0	37.5	45.0
20	34.0	35.0	20.0	31.5	39.0	6.0	26.0	37.5	45.0
22	36.0	37.0	20.0	31.5	39.0	6.0	26.0	37.5	45.0
24	38.0	39.0	20.0	34.0	44.0	6.0	26.0	40.0	50.0
25	39.0	40.0	20.0	34.0	44.0	6.0	26.0	40.0	50.0
28	42.0	43.0	26.0	36.5	44.0	6.0	32.0	42.5	50.0
30	44.0	45.0	26.0	35.5	43.0	7.0	33.0	42.5	55.0
32	46.0	48.0	26.0	35.5	48.0	7.0	33.0	42.5	55.0
33	47.0	48.0	26.0	35.5	48.0	7.0	33.0	42.5	55.0
35	49.0	50.0	26.0	34.5	47.0	8.0	34.0	42.5	55.0
38	54.0	56.0	30.0	37.0	47.0	8.0	38.0	45.0	55.0
40	56.0	58.0	30.0	37.0	47.0	8.0	38.0	45.0	55.0
43	59.0	61.0	30.0	37.0	52.0	8.0	38.0	45.0	60.0
45	61.0	63.0	30.0	37.0	52.0	8.0	38.0	45.0	60.0
48	64.0	66.0	30.0	35.0	50.0	10.0	40.0	45.0	60.0
50	66.0	70.0	30.0	37.5	50.0	10.0	40.0	47.5	60.0
53	69.0	73.0	30.0	37.5	60.0	10.0	40.0	47.5	70.0
55	71.0	75.0	30.0	37.5	60.0	10.0	40.0	47.5	70.0
58	78.0	78.0	33.0	42.5	60.0	10.0	43.0	52.5	70.0
60	80.0	80.0	33.0	40.5	58.0	12.0	45.0	52.5	70.0
63	83.0	83.0	33.0	40.5	58.0	12.0	45.0	52.5	70.0
65	85.0	85.0	33.0	40.5	68.0	12.0	45.0	52.5	80.0
68	88.0	90.0	33.0	40.5	68.0	12.0	45.0	52.5	80.0
70	90.0	92.0	33.0	48.0	68.0	12.0	45.0	60.0	80.0
75	99.0	97.0	40.0	48.0	68.0	12.0	52.0	60.0	80.0
80	104.0	105.0	40.0	47.5	77.5	12.5	52.5	60.0	90.0
85	109.0	110.0	40.2	47.7	77.7	14.0	54.2	61.7	91.7
90	114.0	115.0	40.2	52.7	77.7	14.0	54.2	66.7	91.7
95	119.0	120.0	40.2	52.7	77.7	14.0	54.2	66.7	91.7
100	124.0	125.0	40.2	52.7	77.7	14.0	54.2	66.7	91.7

MINKIX Material Code

The MINKIX Material Code is comprised of 5 character code such as "BCFZF" which is defined by the following parameters. Check the material code below to specify your requirement on materials. With the detailed code provided, MINKIX promises to speed up offering quotation to you.

Rotary Materials
- A – Resin-Car
- B – 99.5% Ceramic
- C – Anti-Car
- Q – Sintered-sic
- S – RB-SIC
- T– YN6 TC
- I – High Nickel Cast Iron
- Z – Bronze
- D – 304 Stainless Steel
- G – 316 Stainless Steel
Stationary Materials
- A – Resin-Car
- B – 99.5% Ceramic
- C – Anti-Car
- Q – Sintered-sic
- S – RB-SIC
- T– YN6 TC
- I – High Nickel Cast Iron
- Z – Bronze
- D – 304 Stainless Steel
- G – 316 Stainless Steel
Secondary Seal Materials
- K – KALREZ
- X – AFLAS
- E – EPDM
- F – PTFE
- M – SILICONE
- N – NITRILE
- P – NEOPRENE
- V – FKM
Spring Materials
- D – 304 Stainless Steel
- G – 316 Stainless Steel
- D2 – 304L Stainless Steel
- G2 – 316L Stainless Steel
- H – Hastelloy
Construction Materials
- D – 304 Stainless Steel
- G – 316 Stainless Steel
- D2 – 304L Stainless Steel
- G2 – 316L Stainless Steel
- H – Hastelloy

Combine

Send Your Enquiry

Having no Idea About Materials?

Feel free to contact MINKIX's experts. We can offer professional advice with working environment information provided.

Contact MINKIX
