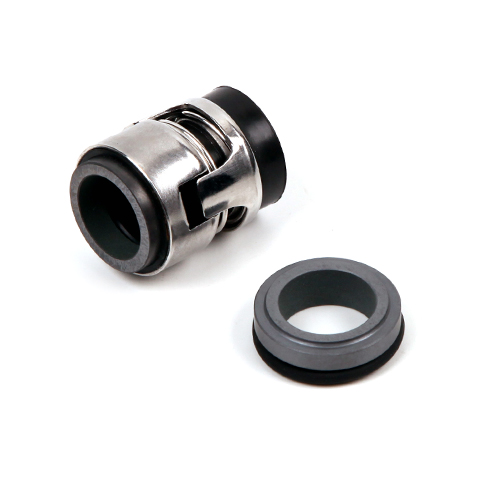

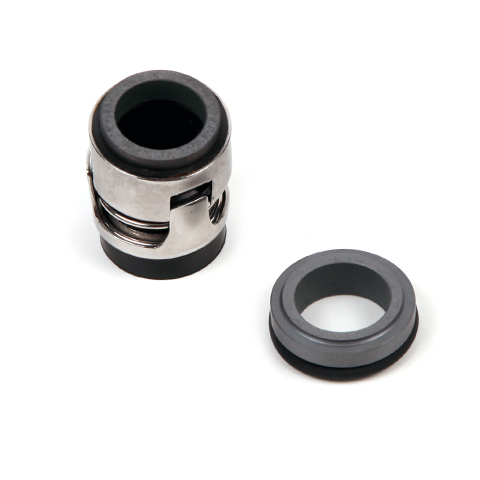

Mechanical Seal For G3,G03,CH,CHI,CHE,CRK,SPK,TP Pumps
G3,G03,CH,CHI,CHE,CRK,SPK,TP Pumps
Materials available
Seal face: Carbon,TC, SIC
Elastomer:Nitrile, Viton,EPDM
Operating Conditions
Temperature: -30°C to +200°C
Pressure: ≤1.2MP a
Speed：≤10m/s

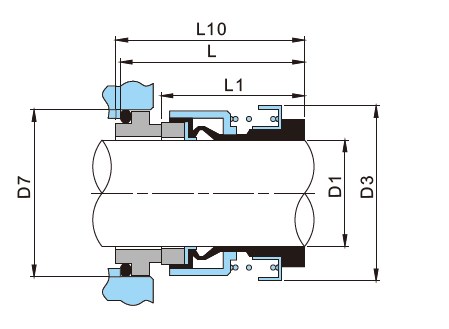

| D1(mm) | D3 | D7 | L1 | L | L10 |
| 12 | 22 | 23.0 | 31.0 | 39.0 | 40.5 |
| 16 | 26 | 27.0 | 32.5 | 40.5 | 41.5 |
Feel free to contact MINKIX's experts. We can offer professional advice with working environment information provided.
Contact MINKIXif you have more than 1 product to inquire, add them to the enquiry list and send in bulk.
