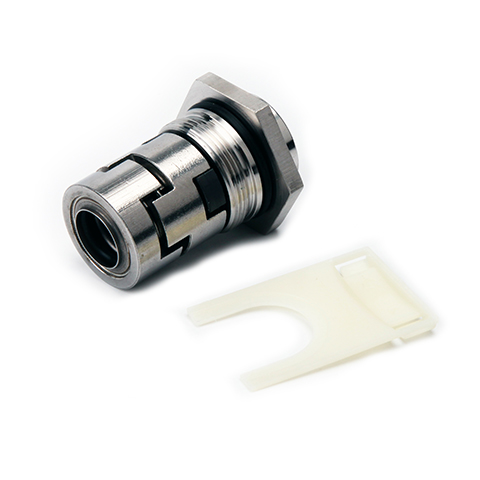

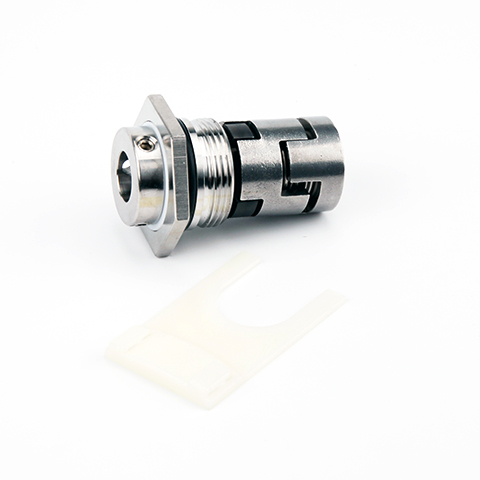

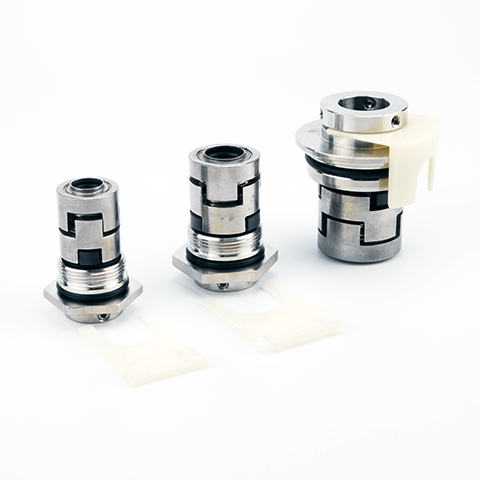

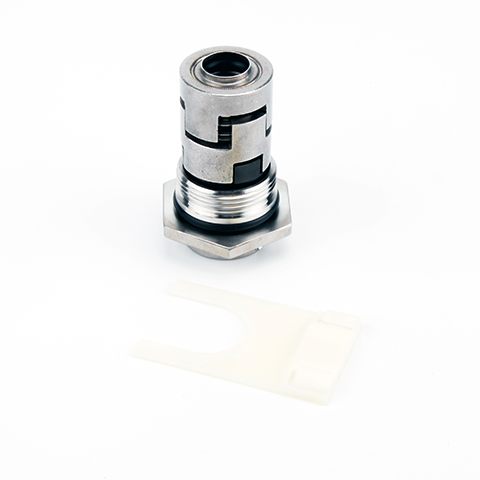

Grundfos CR series pump For GLF-C-12/16mm

  • MINKIX Code:

    GFC
  • Equivalent to:

    GLF-C-12/16mm

  • INTRODUCTION OF THIS MECHANICAL SEAL

It is suitable to Grundfos Pumps:

Model:CR1,3,5,10,15,20,32,45,64,90

Model:CRN1,3,5,10,15,20,32,45,64,90

  • Quality Material
  • Low Leakage Rate
  • Fast Quotation
  • In-stock Supply
  • Lightening Delivery
  • Reliable After-Sales

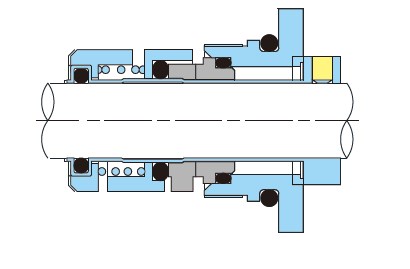

Product Drawing


GFC2 12 16 DRAWING

Product Information


Materials available

Seal face: Carbon, Ceramic, SIC

Elastomer:Nitrile, Viton,EPDM



Operating Conditions

Temperature: -30°C to +200°C

Pressure: ≤1.2MP a

Speed:≤10m/s



Product Dimensions & Information

  • Imperial Dimension
  • 12mm/16mm

Send Your Enquiry

  • Product Series (MINKIX Code)*

  • Pump Shaft Size (D)*

  • Quantity Needed*

Material Requirement

Add to Enquiry Cart

Having no Idea About Materials?

Feel free to contact MINKIX's experts. We can offer professional advice with working environment information provided.

Contact MINKIX
